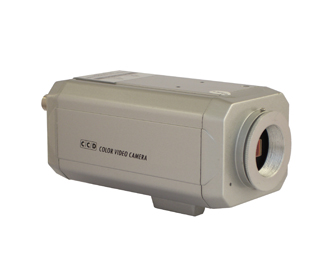

Colour CCD Camera ADL-S3
Features | Benefits |
Sony EX-View technology | The adoption of Sony's new EX View CCD technology provides for improvements in basic camera features such as superb sensitivity, low smear levels and amazingly clear, and detailed images. |
Specification | ||||
Model/Code NO. | ADL-21BS3 | ADL-25S3 | ADL-26S3 | ADL-27S3 |
Signal System | PAL, Colour | |||
Image Sensor | 1/3" Sharp CCD | 1/3" Sony CCD | 1/3" Sony CCD, EX-View technology | 1/3" Sony CCD |
Resolution | 420TVL | 480TVL | 480TVL | 520TVL |
Minimum Illumination | 1 Lux | 0.1 Lux | 0.01 Lux | 0.5 Lux |
Pixels | 537(H)×597(V) | 752(H)x582(V) | 795(H)×596(V) | |
S/N Ratio | >48dB | |||
Electronic Shutter | 1/50-1/100,000 Second | |||
Video Output | 1.0Vp-p,75Ω | |||
Audio Output | 2.0Vp-p | |||
White Balance | Auto Tracing White Balance | |||
Scanning system | 2:1 Internal | |||
Sync system | Internal | |||
Power | DC 12V, 120mA | |||
Size | 135x64x64mm |
NOTE: Just currently stocked Cameras with specific Image sensors are available for selection.
