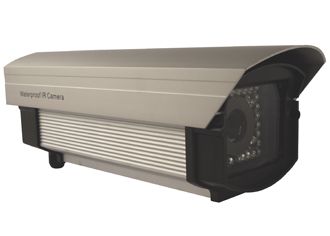

Colour CCD All in One Camera ADL-L1
 |
| Features | Benefits |
| All in one camera | All in one camera - camera with Waterproof housing, lens and IR LEDs built in. This makes camera Installation: quick and easy. IR LEDs enables the camera to capture high-quality images during day and at night - making it perfect for 24-hour surveillance. Waterproof housing guarantees the reliable use of the camera: indoor and outdoor. All in one camera - the Practical and Cost-Effective Surveillance Solution. |
| IP66 standard | IP66 means there is no ingress of dust and the equipment is protected against powerful water jets. |
| Specification | |||
| Model/Code NO. | ADL-21BL1 | ADL-25L1 | ADL-27L1 |
| Signal System | PAL, Colour | ||
| Image Sensor | 1/3" Sharp CCD | 1/3" Sony CCD | 1/3" Sony CCD |
| Resolution | 420TVL | 480TVL | 520TVL |
| Minimum Illumination |
1 Lux (0 Lux with IR Led’s) |
0.1 Lux (0 Lux with IR Led’s) |
0.5 Lux (0 Lux with IR Led’s) |
| Pixels | 537(H)×597(V) | 752(H)x582(V) | 795(H)×596(V) |
| S/N Ratio | >48dB | ||
| Electronic Shutter | 1/50-1/100,000 Second | ||
| Video Output | 1.0Vp-p,75Ω | ||
| White Balance | Auto Tracing White Balance | ||
| Scanning system | 2:1 Internal | ||
| Sync system | Internal | ||
| Power | DC 12V, 120mA (800mA - IR ‘on’ ) | ||
| Size | 340x107x133mm | ||
NOTE: Just currently stocked Cameras with specific Image sensors are available for selection.
