Wired (MPEG-4) Video Server IP-SUS110

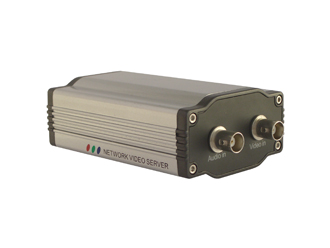

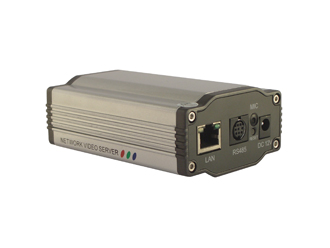

Wired (MPEG-4) Video Server IP-SUS110
Code: IP-SUS110
Description:
  • Converting existing analog cameras to an IP-based monitoring system
  • Video/Audio input: 1Ch
  • MPEG-4 compression
  • D1 high-definition image
  • Various display formats
  • Real-time (up to 25 f/s) video
  • Support IE browse
  • Easy-to-use user interface
  • Video motion detection
  • Power supply Included

Specification
Model/Code NO. IP-SUS110
Hardware CPU  32Bit RSIC Embedded Processor
OS  Embedded Linux system
Network Protocol  Support TCP/IP, HTTP, ARP, ARP, etc.
Interface RJ45 10/100M
Video Compression MPEG-4
Frame Rate 10-25fps (D1)
Resolution D1: 720×576  CIF: 320×288  FIELD: 720×288  QCIF: 192×144
Input 1Ch
Output 1Ch
Audio Input 1Ch
Alarm/Recording Motion detection, Alarm input, Output. Schedule and Manual Recording
Pan/Tilt Control RS485
Security Account number, password, user privilege
Power Supply DC 12V, 1A
Size 104x97x40mm
