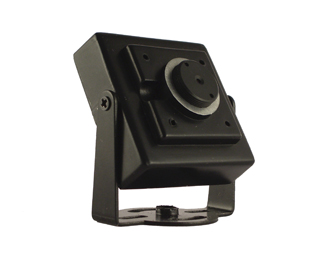

Colour CCD Mini Square Camera ADL-21BP1

Colour CCD Mini Square Camera ADL-21BP1
Code: ADL-21BP1-3.7p
Description:
  • Mini Square Aluminium casing
  • Compact and discreet - can be hidden anywhere
  • 1/3" Sharp CCD Image Sensor
  • High resolution – 420 TV lines
  • Fitted with fixed Iris lens
  • Various types of lenses are available
  • The camera is supplied with a fixing bracket
Lens:
Power supply (offer price – just with Camera):

Specification
Model/Code NO. ADL-21BP1
Signal System  PAL, Colour
Image Sensor 1/3" Sharp CCD
Resolution 420TVL
Minimum Illumination  1 Lux
Pixels  537(H)×597(V)
S/N Ratio >48dB
Electronic Shutter 1/50-1/100,000 Second
Video Output 1.0Vp-p,75Ω
White Balance  Auto Tracing White Balance
Scanning system  2:1 Internal
Sync system Internal
Power DC 12V, 120mA
Size 37x37x17mm (without lens)



If you need help to choose required lens, please click here.
Click here for more details about DSA-30W-12 UK.
