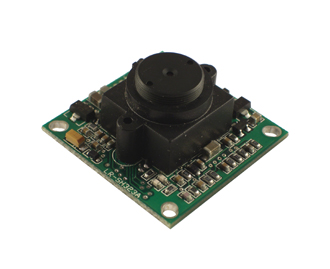

Colour CCD Board Camera ADL-21B

Colour CCD Board Camera ADL-21B
Code: ADL-21B-3.7P
Description:
  • 1/3" CCD technology
  • High resolution: 420 TV lines
  • Day/Night Mode
  • The board size 32x32mm
  • Various types of lenses are available
  • Can be applied in any application of your choice at a low cost
  • Supplied with lead; connectors: Power and BNC



We can design and make application with this Camera at client request - just contact us.

Lens:
Power supply (offer price – just with Camera):

Specification
Model/Code NO. ADL-21B
Signal System  PAL, Colour
Image Sensor 1/3" Sharp CCD
Resolution 420TVL
Minimum Illumination  1 Lux
Pixels  537(H)×597(V)
S/N Ratio >48dB
Electronic Shutter 1/50-1/100,000 Second
Video Output 1.0Vp-p,75Ω
White Balance  Auto Tracing White Balance
Scanning system  2:1 Internal
Sync system Internal
Power DC 12V, 120mA
Board Size 32X32mm



Print product description page
If you need help to choose required lens, please click here.
Click here for more details about DSA-30W-12 UK.
