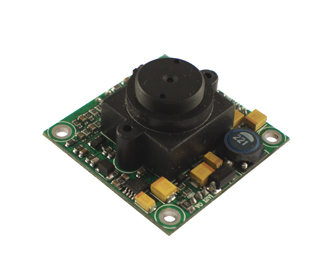

Super High Resolution Colour CCD Board Camera ADL-27

Super High Resolution Colour CCD Board Camera ADL-27
Code: ADL-27-3.7P
Description:
  • 1/3" CCD technology
  • Super high resolution: 520 TV lines
  • High sensitivity: 0.5 Lux
  • Day/Night Mode
  • The board size 32x32mm
  • Various types of lenses are available
  • Ideal for use in any professional surveillance application - Picture quality meet broadcasting standards
  • Supplied with lead; connectors: Power and BNC



We can design and make application with this Camera at client request - just contact us.

Lens:
Power supply (offer price – just with Camera):

Specification
Model/Code NO. ADL-27
Signal System  PAL, Colour
Image Sensor  1/3" Sony CCD
Resolution 520TVL
Minimum Illumination   0.5 Lux
Pixels 795(H)×596(V)
S/N Ratio >48dB
Electronic Shutter 1/50-1/100,000 Second
Video Output 1.0Vp-p,75Ω
White Balance  Auto Tracing White Balance
Scanning system  2:1 Internal
Sync system Internal
Power DC 12V, 120mA
Board Size 32X32mm



If you need help to choose required lens, please click here.
Click here for more details about DSA-30W-12 UK.
